Product Details:
|
| Advantage: | Alarm Function | Model NO.: | ZY-1FW |
|---|---|---|---|
| Origin: | Hefei Anhui | Power: | 220V/110V |
| Oxygen Flow: | Can Be Adjusted(1L-7L) | Packing: | 300*200*300mm 7KG |
| High Light: | 1 Litre medical oxygen equipment,Travel medical oxygen equipment,1 Litre home health care oxygen equipment |
||

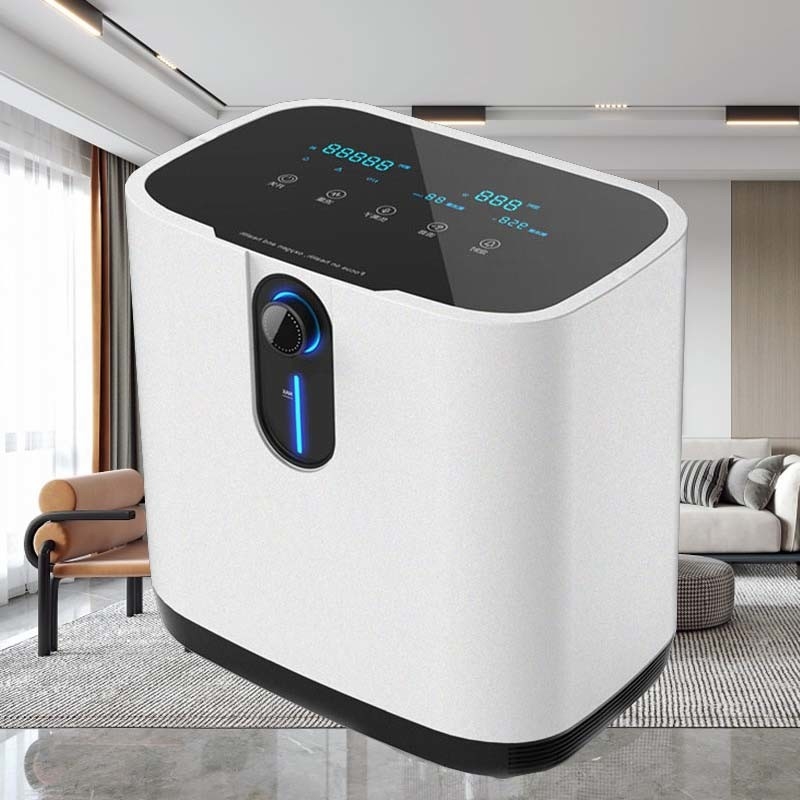

Car use and travel use 1 Litre Oxygen Concentrator portable oxygen-concentrator
Quick Details

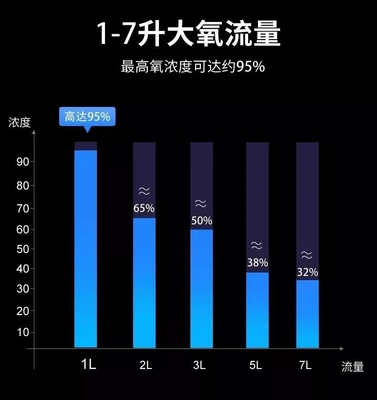

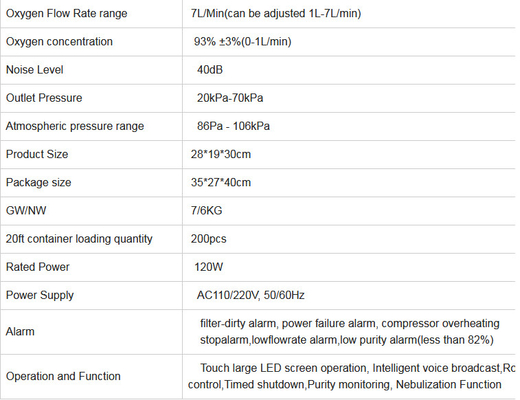

| Oxygen Flow Rate range | 7L/Min(can be adjusted 1L-7Lmin) |
| Oxygen concentration | 93% t3%(0-1L/min) |
| Noise Level | 40dB |
| Outlet Pressure | 20kPa-70kPa |
| Atmospheric pressure range | 86Pa - 106kPa |
| Product Size | 28*19*30cm |
| Package size | 35*27*40cm |
| GW/NW | 7/6KG |
| 20ft container loading quantity | 200pcs |
| Rated Power | 120W |
| Power Supply | AC110/220V, 50/60Hz |
| Alarm | filte-dirtyr alarm, power failure alarm, compressor overheating stopalarm, lowflowrate alarm, low purily alarm(less than 82%) |
| Operation and Function | Touch large LED screen operation, Iteill voice broadcast,Rc cotrol,Timed shutdown Purity monitoring. Nebulization Function |
Product Description
ERROR ALARM PURITY DETECTION
FOUR ALARM FUNCTIONS, LET YOU USE MORE SECURE AND ASSURED
LOW OXYGEN PURITY ALARM
When the oxygen purity is lower than 82%, the indicator light will turn red.
HIGH TEMPERATURE ALARM
when temp in machine exceed 50C,н.T. light will be red while with intermittent alarmsound,
HIGH&LOW PRESSURE ALARM
when the machine running pressure is toohigh, the H.P. light will be red, when the running pressure is too low, theL.P. light wilbe yellow, both will be with continuouslyalarm sound.
POWER FAILURE ALARM
P.F light i red when power is off
